Di Lusso Eco R5 Inset Wood Burning Stove

Manufacturer
Now £1,749.00
Or from £54.44 per month

Finish
  • Black
  • Pewter
Trim
  • 3 Sided
  • 4 Sided
Optional Extras
  • Multi-Fuel Kit
  • Outside Air Kit
  • Smoke Control Kit

Di Lusso EcoDesign 2022 StoveWith a nominal heat output rating of 6.3kW, the Di Lusso Eco R5 Inset is ideally suited to small or medium sized rooms.

Featuring a hot Airwash system where heated air is drawn across the glass window of the stove, creating a screen between the flames and the window. This reduces the build-up of carbon deposits on the glass, guaranteeing an excellent view of your fire as it burns.

As you would expect from a premium brand such as Di Lusso, the R5 Inset is packed with the very latest technology to aid performance and efficiency. The Dual Baffle System featured on this model increases the residence time of the flue gases in the stove by extending their circulation inside the firebox. This keeps the gases present for an optimal period, providing sufficient time for these substances to mix with oxygen and to be greatly eliminated in the combustion process. This enhances the heat produced by the firebox.

Di Lusso Eco fireboxes have been designed to focus radiant heat back into the fire bed. This allows the fire bed to maintain an elevated temperature, which in turn contributes to a greater fuel efficiency.

For easier installation of the R5 Inset, Di Lusso have developed a convection chamber that can be fitted as a separate unit from the firebox. Additionally, the flue collar can be fitted at either a 30° angle or vertical, depending on the specific needs of the installation.

Inset stoves offer a modern alternative to a free-standing wood burning stove. Opt for the 3-sided frame and you can recess the R5 into the wall at hearth level either on it's own or combined within a suitable fireplace. The 4-sided frame allows you to create a modern, 'hole-in-the-wall' feature raised up in the wall. All models are offered in a choice of Black or Pewter finish.

Designed predominantly to burn wood although an optional Multi-Fuel Kit is available allowing you to also burn approved solid fuels. The Di Lusso Eco R5 is a smoke exempt appliance and therefore can be used to burn wood even if you live in a smoke controlled area.

An optional Direct Air Kit is also available. A Direct Air Kit allows the Di Lusson Eco R5 Inset to perform at its best, independently from the internal air supply, by ensuring that air for combustion is brought in externally.

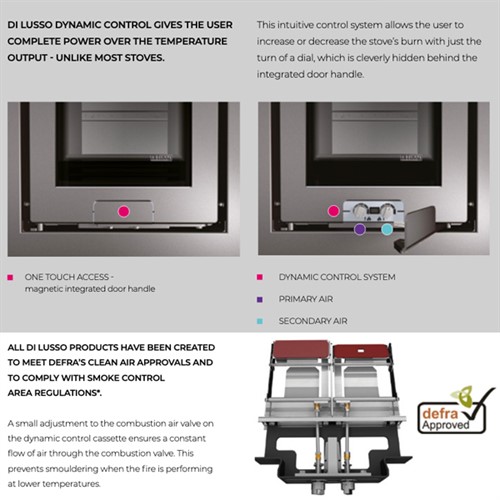

Di Lusso Dynamic Control


Brand
Di Lusso
Model
Eco R5 Inset
Fuel
Wood only (approved solid fuels using optional Multi-Fuel kit)
Nominal Heat Output
6.3kW
Heat Output Range
3.0kW to 13.0kW
Efficiency on Wood
81%
%)
0.12
Flue Diameter
125mm (5") - Top only
Colour/Finish
Black or Pewter
Frame Option
3-sided or 4-sided
DEFRA Approval
Yes
EcoDesign Ready
Yes
Airwash
Yes
Stove Technology
Flame Blade Technology
Max Log Size
350mm
Approx Weight
121kg
Stove Body Warranty
10 Years
*All dimensions are offered as a guide only and subject to change. These sizes are not to be used for any building preparation.

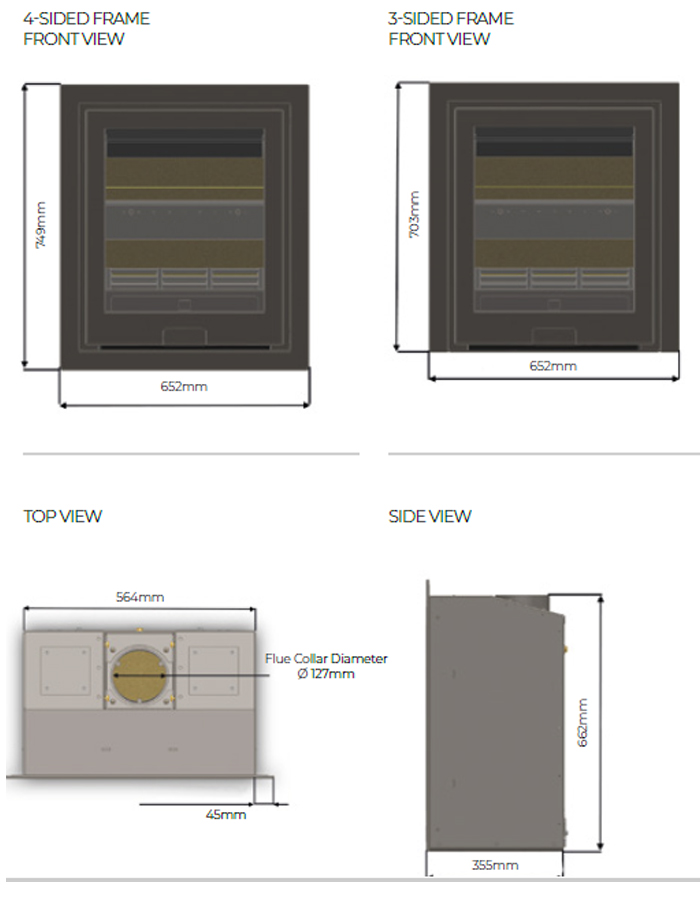

Di Lusso R5 Inset Stove Dimensions
